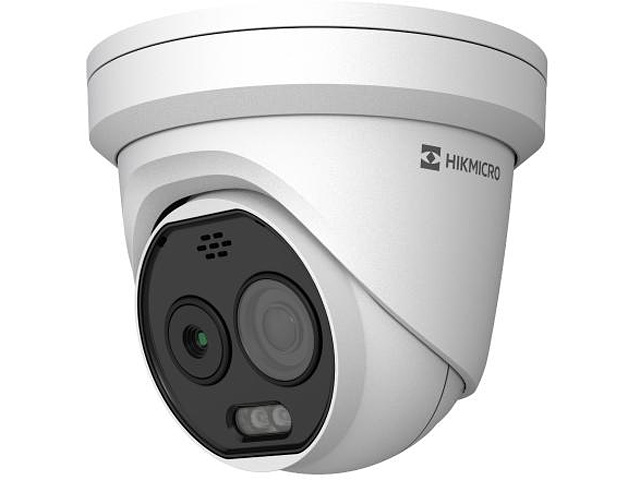

Hikmicro HM-TD1228-7/G1/T3A
256×192 HeatPro Wärmebild- und Optische Bi-Spektrum IP Turret Kamera mit Hybrid-Light
Neu
Verfügbar in ca. 1 bis 8
Arbeitstagen: 23 Stk
Verfügbar in ca. 1 bis 12 Arbeitstagen
Bestell-Nr. 21069
Technische Beschreibung
Thermal Camera: VOx UFPA 256×192 Pixels, Pixel Pitch 12 µm, NETD<= 25 mK, 6.9 mm (24.9°×18.7°); Bi-Spectrum Image Fusion; Temperature Range -20~+150°C, Temperature Accuracy ±8°C; Target Coloration. Optical Camera: 1/2.7" Progressive Scan CMOS, 5 MP, 2688×1944, 0.0089 Lux @(F1.6, AGC ON), 8 mm Lens (39.4°×21.96°), Smart Hybrid Light, up to 60 m IR/White Light, 120 dB WDR, 3D DNR; Dual-Stream, H.265/H.264/MJPEG, microSD/SDHC/SDXC Card Slot (up to 512 GB), 1/1 Audio I/O, 1/2 Alarm I/O, Audible Alarm, RS-485, 12 VDC / PoE (802.3af, Class 3), IP67; 4 VCA Rules: Line Crossing, Intrusion, Region Entrance & Exit; Extended Human/Vehicle Detection Distance and ultra Decrease false Alarm by GUANLAN Large-Scale AI Model, 4 VCA Rule Types: Line Crossing / Intrusion / Region Entrance / Region Exit, Fire Point Detection Algorithm, Smoking Detection Algorithm, Temperature Exception Alarm for Fire Prevention; High Quality Detector with 10 Years Guarantee.
Hikmicro_HM-TD1228-7-G1-T3A_Datasheet_ENG_20250630_21069
