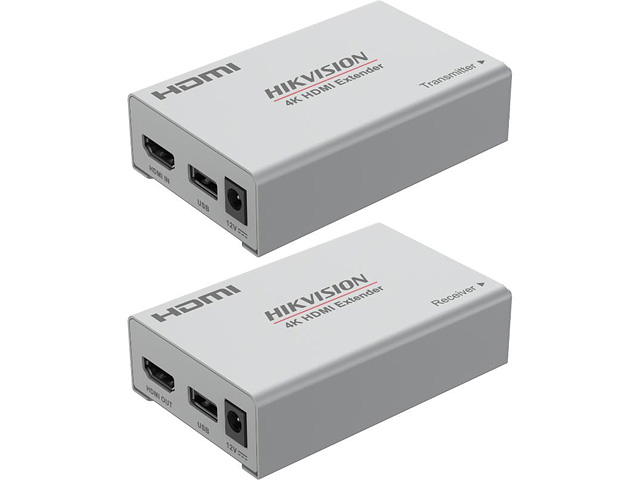

Hikvision DS-52EX01HI-4K
4K HDMI IP-Extender (Sender/Empfänger) mit USB Schnittstelle, bis zu 120 m Reichweite
Neu
Verfügbar in ca. 1 bis 8
Arbeitstagen: 193 Stk
Verfügbar in ca. 1 bis 12 Arbeitstagen
Bestell-Nr. 20687
Technische Beschreibung
Receiver: 1-ch HDMI Output, 4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 2K (2560×1440)/60 Hz, 1920×1080p/60 Hz, 1080×720/60 Hz, 1 Console Interface, 1 USB Interface, RJ45 Network Interface, 12 VDC / 1 A, Dimension (W×D×H) 96 mm × 60 mm × 26 mm.
Transmitter: 1-ch HDMI Input, 4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 2K (2560×1440)/60 Hz, 1920×1080p/60 Hz, 1080×720/60 Hz, 1 Console Interface, 1 USB Interface, RJ45 Network Interface, 12 VDC / 1 A, Dimension (W×D×H) 96 mm × 60 mm × 26 mm.
Transmission Distances:
Resolution for 120 m Transmission Distance (with Cat6 Ethernet Cable): 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1080×720/60 Hz
Resolution for 100 m Transmission Distance (with Cat5e Ethernet Cable): 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1080×720/60 Hz
Resolution for 60 m Transmission Distance (with Cat6/Cat5e Ethernet Cable): 4K (3840×2160)/60 Hz, 2K (2560×1440)/60 Hz
Transmitter: 1-ch HDMI Input, 4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 2K (2560×1440)/60 Hz, 1920×1080p/60 Hz, 1080×720/60 Hz, 1 Console Interface, 1 USB Interface, RJ45 Network Interface, 12 VDC / 1 A, Dimension (W×D×H) 96 mm × 60 mm × 26 mm.
Transmission Distances:
Resolution for 120 m Transmission Distance (with Cat6 Ethernet Cable): 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1080×720/60 Hz
Resolution for 100 m Transmission Distance (with Cat5e Ethernet Cable): 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1080×720/60 Hz
Resolution for 60 m Transmission Distance (with Cat6/Cat5e Ethernet Cable): 4K (3840×2160)/60 Hz, 2K (2560×1440)/60 Hz
Hikvision_DS-52EX01HI-4K_Datasheet_ENG_20240912_20687
